Roll Ball Mill

Doheem> PRODUCTS > Roll Ball Mill

03
3
lab-jar-mill01
罐磨机-4
罐磨机-6
罐磨机-7
Jar Mill
Jar Mill
Jar Mill
Jar Mill
Jar Mill
Jar Mill

Jar Mill

Hits: 137

Applicatioun

Lab jar mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions. The machine is preferred equipment for scientific research, education

  • Video
  • Iwwersiicht
  • schaffen Prinzip
  • Fonktioun / Virdeeler
  • Donnéeën Blat
  • Matchbar Accessoire

Lab jar mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions. The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials. Thus it obtains best effects of grinding. As a result, materials are ground to micro powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, so that you may set working time according to requirement at any time. It not only saves time and labor, but is easy for operation.

x-1

x-2

When the machine works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.

3 (2)

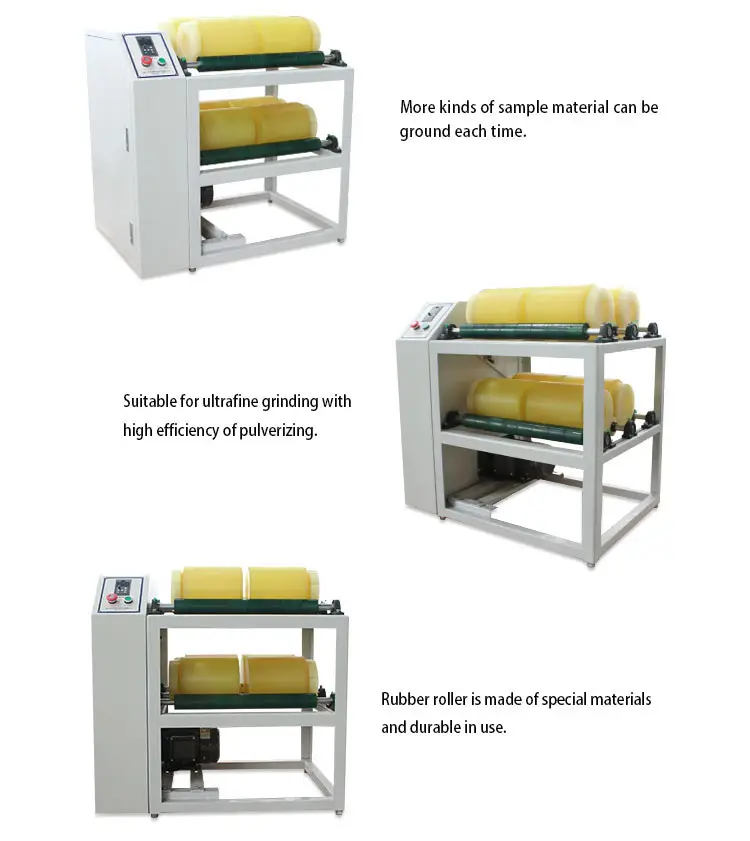

1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set as per users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.

Technical Parameters of Lab Jar Mill
KategorieModell NrEnergieversuergungRotéiert GeschwindegkeetMax Luede
Pro Jar
Dimensiounen &
 Net Gewiicht
2 PositiounenGQM-2-5220 V-50 Hz
Or 60Hz/0.75kw
50-410 U / min35KGS950 * 480 * 685mm
59KGS
GQM-2-15220 V-50 Hz
or 60Hz/1.1kw
40-365 U / min80KGS1130 * 550 * 690mm
80KGS
GQM-2-20220 V-50 Hz40-340 U / min120KGS1350 * 650 * 690mm
92KGS
or 60Hz/1.5kw
4 PositiounenGQM-4-5220 V-50 Hz
or 60Hz/0.75kw
50-410 U / min35KGS950 * 660 * 690mm
70KGS
Eenzel Schicht
GQM-4-5220 V-50 Hz
or 60Hz/0.75kw
50-410 U / min35KGS950 * 480 * 870mm
92KGS
Duebel Schicht
GQM-4-15220 V-50 Hz
or 60Hz/1.5kw
40-365 U / min80KGS1130 * 800 * 690mm
95KGS
GQM-4-20380 V-50 Hz
or 60Hz/2.2kw
40-340 U / min120KGS1350 * 820 * 690mm
122KGS
8 PositiounenGQM-8-5220 V-50 Hz
or 60Hz/1.5kw
50-410 U / min35KGS950 * 660 * 960mm
106KGS
GQM-8-15380 V-50 Hz
or 60Hz/2.2kw
40-365 U / min80KGS1130 * 800 * 960mm
152KGS

Remarken:
1. Customized model in different sizes is acceptable.
2. Customized model with safety cover is available.

Matching Solutions Recommendation for Materials & Mill Balls roll mill jars,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Accessoire

Available Roll Mill Jars & Specifications

Description of Roll Mill JarsVerfügbar Spezifikatioune
Normal ceramic roll mill jarFrom 1.0L to 15L
304 Stainless steel roll mill jarFrom 0.5L to 20L
Alumina ceramic (Corundum) roll mill jarFrom 0.5L to 10L
Nylon roll mill jarFrom 0.5L to 20L
Polyurethane roll mill jarFrom 0.5L to 20L
PTFE/Teflon roll mill jarFrom 0.5L to 20L
Tungsten carbide roll mill jarVun 250ml bis 3L
Roll jacket (Stainless steel)0.5L bis 3L
316l Stainless steel roll mill jarpersonnaliséierten

Matching Solutions Recommendation for Materials & Roll Mill Jars

Materials & RequestsRecommandéiert Léisungen
Soil materials and other materials which are not allowed with any impurity contaminationAgate Mill Jar
Metal or nonmetal which are not allowed with any impurity contaminationZirconium mill jar
Héichhärte Materialien wéi Diamant, WolframkarbidWolfram Carbide Mill Jar
Strong add & alkali materials, or other materials under high temperaturePTFE Mill Jar
Iron ore materials or other materials with low impurity sensitivity304 stainless steel mill jar
Pigment oder Material mat spéider Veraarbechtung ënner héijer TemperaturNylon Mill Jar
Aluminiummaterialien wéi Keramik GlasurCorundum Mill Jar
Elektronesch Materialien wéi Lithium BatteriePolyurethan Mill Jar

Mir kënnen och all Zorte vu Millenbäll ubidden wéi Edelstahlkugelen, Zirkoniumkugelen, Aluminiumoxidkugelen, PU Kugelen, Stahlkuelebäll, Wolfram Kugelen, Agatkugelen, Hardmetallkugelen, Siliziumnitridkugelen, héich verschleißbeständeg Stahlkugel, Manganstahlbäll. , Nylonbäll, Zementkarbid, Kristallsglas an aner speziell Metallmaterialien.

Accessoiren 2

Available Roll Mill Jars & Specifications

Description of Roll Mill JarsVerfügbar Spezifikatioune
Normal ceramic roll mill jarFrom 1.0L to 15L
304 Stainless steel roll mill jarFrom 0.5L to 20L
Alumina ceramic (Corundum) roll mill jarFrom 0.5L to 10L
Nylon roll mill jarFrom 0.5L to 20L
Polyurethane roll mill jarFrom 0.5L to 20L
PTFE/Teflon roll mill jarFrom 0.5L to 20L
Tungsten carbide roll mill jarVun 250ml bis 3L
Roll jacket (Stainless steel)0.5L bis 3L
316l Stainless steel roll mill jarpersonnaliséierten

Matching Solutions Recommendation for Materials & Roll Mill Jars

Materials & RequestsRecommandéiert Léisungen
Soil materials and other materials which are not allowed with any impurity contaminationAgate Mill Jar
Metal or nonmetal which are not allowed with any impurity contaminationZirconium mill jar
Héichhärte Materialien wéi Diamant, WolframkarbidWolfram Carbide Mill Jar
Strong add & alkali materials, or other materials under high temperaturePTFE Mill Jar
Iron ore materials or other materials with low impurity sensitivity304 stainless steel mill jar
Pigment oder Material mat spéider Veraarbechtung ënner héijer TemperaturNylon Mill Jar
Aluminiummaterialien wéi Keramik GlasurCorundum Mill Jar
Elektronesch Materialien wéi Lithium BatteriePolyurethan Mill Jar
